Availability: In StockAJAX FIBRA Keypad White
- ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license

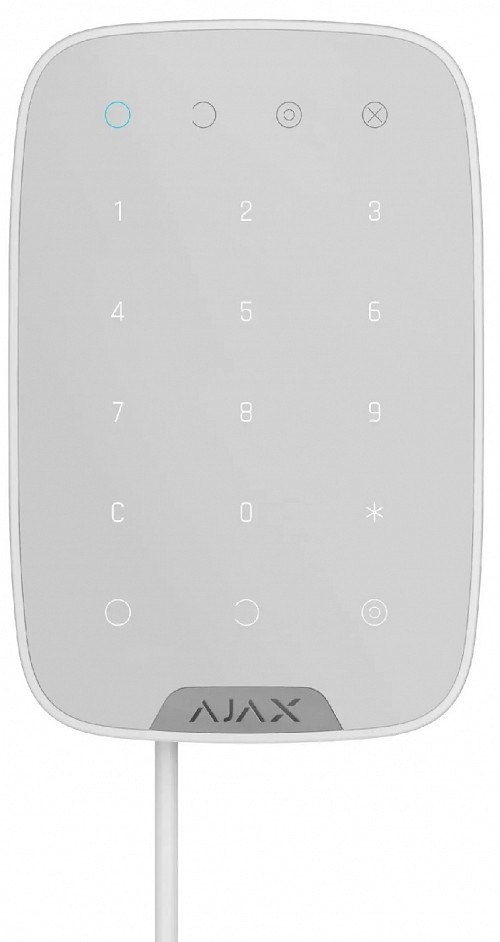

- KeyPad Fibra is a wired touch keypad of the Ajax security system. Controls the security modes and Night mode. Supports duress code and protected from access code guessing. When it is active, the LED indication notifies about the security mode
- KeyPad Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
- KeyPad Fibra is part of the wired Fibra devices line. The installation, sale, and administration of these devices are performed only by accredited Ajax partners
The keypad is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided. Integration with other security systems is not provided either
Description
Description
Compatibility
- Hub Hybrid (2G)
- Hub Hybrid (4G)
Communication
- Fibra communication technology : Two-way communication, Advanced anti-sabotage , Instant notifications, Remote configuration via the app
- Line connection : 4-core cable
- Fibra line length : up to 2,000 meters (When using the U/UTP cat.5 twisted pair)
- Encrypted communication
Key features
- Sensor type : Capacitive
- Security mode indication : Only when KeyPad Fibra is active.
- Duress code : 50 personal codes (One per each user)
- 1 general code : One per KeyPad Fibra
- Functional button : Panic button / Mute fire alarms
- ACE Type : Type B
Anti-sabotage protection
- Code guessing protection
- Tampering alarm
- Protection against forgery : device authentication
Power supply
- Keypad’s operating voltage range : 5−27 V⎓, up to 230 mW (The detector is powered by the control panel)
- Keypad’s nominal operating voltage : 24 V⎓
Enclosure
- Dimensions : 150 × 103 × 19 mm
- Weight : 148 g
- Operating temperature range : from −10°C to +40°C
- Operating humidity : up to 75%
- Protection class : IP50
