Description

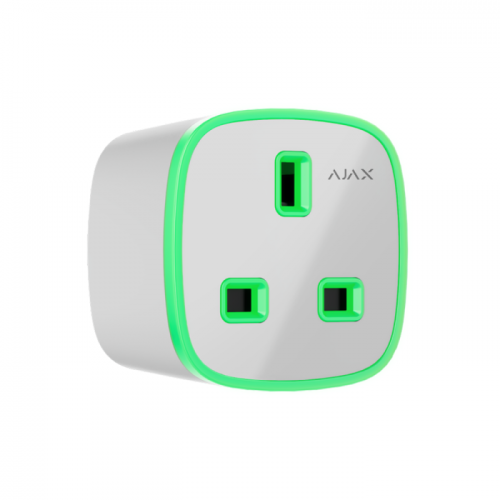

- Classification : Smart socket
- Device type : Remote-controlled
- Installation method : In outlet
- Compatibility with hubs : All hubs
- Compatibility with range extenders : All radio signal range extenders
- Actuating element : Electromagnetic relay
- Service life : At least 200,000 switches
- Power supply voltage range : 230 V~, 50 Hz
- Output power (resistive load at 230 V) : up to 3 kW
- Device energy consumption : ≤ 1.5 W
- Maximum current protection : Yes, selectable 1–16 A / For regular loads, we recommend using current values up to 13 A. Values between 13 and 16 A can only be used for short-term loads
- Maximum temperature protection : Yes, +95°С / The socket turns off automatically if the temperature is exceed
- Overvoltage protection : Yes,min — 184 V~max — 253 V~
- Electric shock protection class : Class I (with grounding terminal)
- Energy consumption parameter check : Yes (current, voltage, power consumption, consumed energy)
- Load indicator : Yes
- Load current : 13 A
- Load indicator : Yes / The option of adjusting the brightness of the LED frame of the device (15 brightness values)
- Operation modes : Impulse / Bistable
- Contact state : Normally open / Normally closed
- LED indication : Adjustable (LED frame, 7 colours)
- Adjustable pulse duration : 1–255 sec
- Jeweller radio technology : Communication range with the central unit — up to 1,100 m in an open space / Two-way communication between devices
- Operating frequencies : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / (depends on the region of sale)
- Self-adjusting RF output power — up to 25 mW
- Block encryption with floating key
- Device authentication
- Verification of each communication session
- Detector scanning period from 12 to 300 sec
- Anti-sabotage : Protection against forgery / Jamming detection
- Remote setting and testing : +
- Operating temperature range : From 0°С to +40°С
- Operating humidity : Up to 75%
- Ingress protection : IP20
- Overall dimensions : 54.5 × 54.5 × 59 mm (with plug)
- Weight : 90 g
