Description

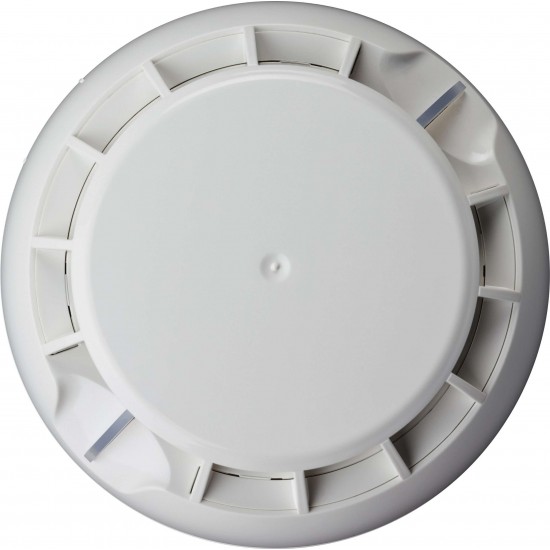

Thermal Fire Detector with fixed thermal threshold
- Digital Algorithm Processor.
- Avoiding false alarms.
- Excellent plastic quality.
- Sensitivity – 75 °C Class (BS).
- 360° Visual Indication with 2 LED indicators – Indication of correct operation every 8 seconds.
- Low Profile.
- B24 or B24RD.
- Compatible with all fire detection panels on the market with the appropriate base selection.
- Certified according to European regulations EN54-5.
Technical Specifications:
- Supply voltage 9-30 VDC (nominal value 12/24 VDC).
- Power alarm status.
- B24 and B24D type base: 20mA / 12-30V.
- B24RD type base: 33mA/12V, 49mA/24V, 57mA/30V.
- B12 type base: 18mA / 9V, 29mA / 12V, 32mA / 15V Class A2/S (according to EN 54-5 standard).
- Protected area up to 35 m2 (according to EN54 standard).
- Installation height up to 3.5 meters (in accordance with EN54 standard).
- Output in alarm condition on terminal RI 20mA (maximum) / – 3.3V.
- Protection degree IP 30 Operating temperature range -10 / + 75 ° C.
- Relative humidity resistance (93 ± 3)% at 40 ° C.
- Dimensions (including base) diameter 102 mm, h 42 mm.
- Weight (including base) 160g.
| Fire detection | |
| Agency Certification | EVPU |
| Certificate | EN 54 – 5 |
| Fire Detector Type | Thermal 75°C |
