Description

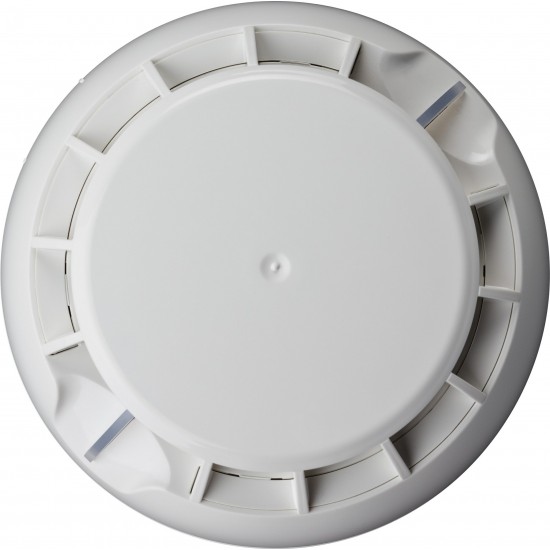

Sensomag R20 Thermal Differential Fire Detector
- Digital Algorithm Processor.
- Avoiding false alarms.
- Excellent plastic quality.
- Sensitivity – 58 °C Class (A1R).
- 360° Visual Indication with 2 LED indicators – indication of proper operation every 8 seconds.
- Low Profile.
- B24 or B24RD.
- Compatible with all fire detection panels on the market with the appropriate base selection.
- Certified according to European regulations EN54-5 .
Technical Specifications:
- Supply voltage 9-30 VDC (nominal value 12/24 VDC)
- Power alarm status
- B24 and B24D type base: 20mA / 12-30V
- B24RD type base: 33mA/12V, 49mA/24V, 57mA/30V
- B12 type base: 18mA / 9V, 29mA / 12V, 32mA / 15V Class A1 / R (according to EN 54-5 standard)
- Protected area up to 35m²
- Installation height up to 3.5 m
- Output in alarm condition on terminal RI 20mA (maximum) / – 3.3V
- Protection class IP 30
- Operating temperature range -10 / + 60 ° C
- Relative humidity resistance (93 ± 3)% at 40 ° C
- Dimensions (including base) diameter 102 mm, h 42 mm
- Weight (including base) 160 g
| Fire detection | |
| Agency Certification | EVPU |
| Certificate | EN 54 – 5 |
| Fire Detector Type | Thermodifferential 60°C |
