Description
Model

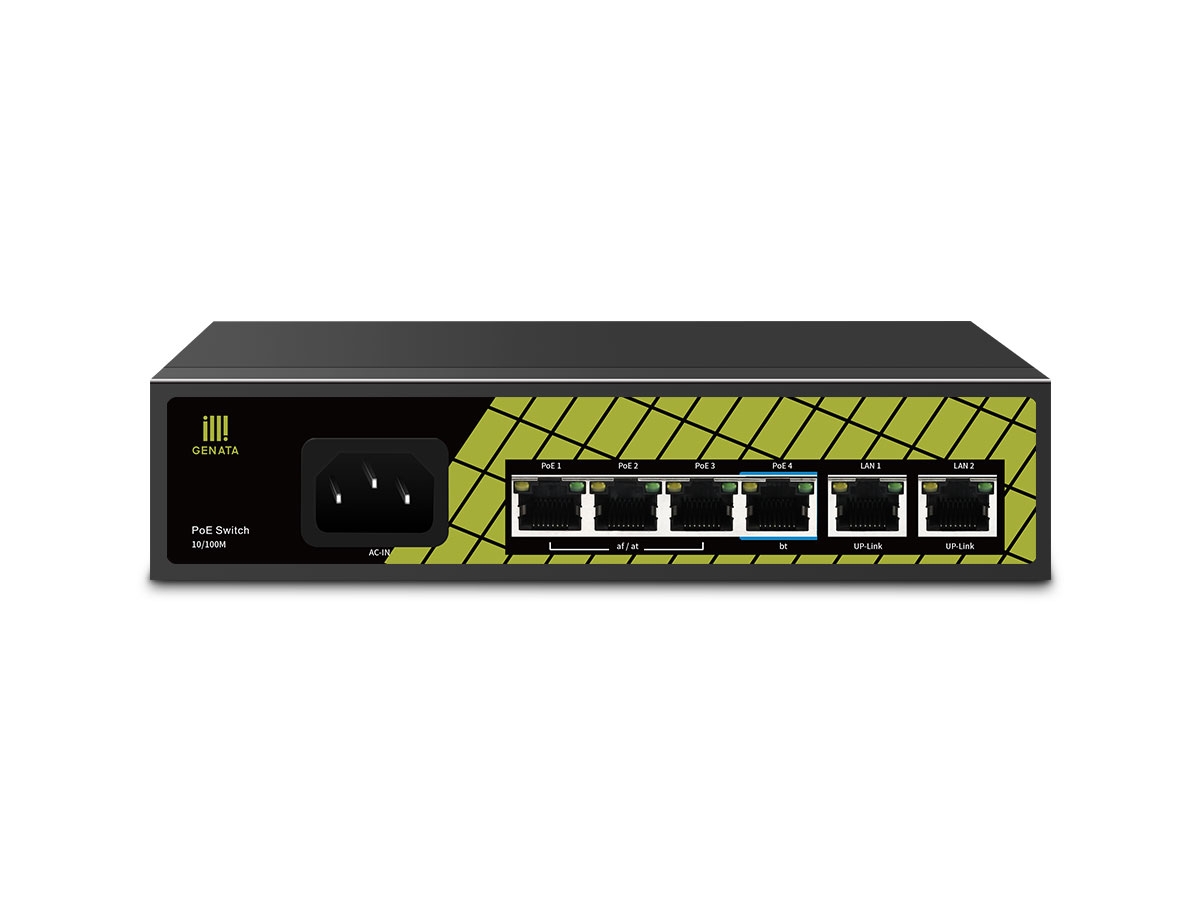

GNT-P9206EA
Ports
PoE (1-3):10/100Mbps PoE ports (RJ45)
PoE (4):10/100Mbps PoE port (R.J45),Support bt 60W High Power
LAN (1~2): 10/100Mbps uplink ports (RJ45)
Transmission Rate
200Mbps Full Duplex; 10 or 100Mbps Half Duplex
Transmission Distance
100Mbps /10Mbps,Auto-Adaption 250m
Bandwidth:1.2Gbps
Network Latency (10 to 100Mbps): = 16us (use the 64byte package size)
Performance
Specification
MAC address table: 2K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port,
148800pps the most for 100M port
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
Networking Standard
IEEE 802.3x Flow Control
IEEE 802.3at/at/bt Power over Etheret
Power Support
Power Input: AC 90-24OV Total≤65W
Al Watchdog: Port 1-4
Power Output: PoE1-3 Port: 1/2(+52V),3/6(GND)≤30W
PoE 4 Port: 1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W
Protection Level
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2
Physical Specifications
Size(L*W*H): 187mm*139mm*43mm, Weight: 1.0KG
Operating Temperature: -30 C-60 C
Working
Environment
Storage Temperature: -40 C~70 C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%-90% Non-condensing
CE Mark
Certification
FCC Part15, Class B
RoHS 2.0
Warranty
Whole Device: 1 year
Package Content
AC Power Cable, User Manual
