Description
Model

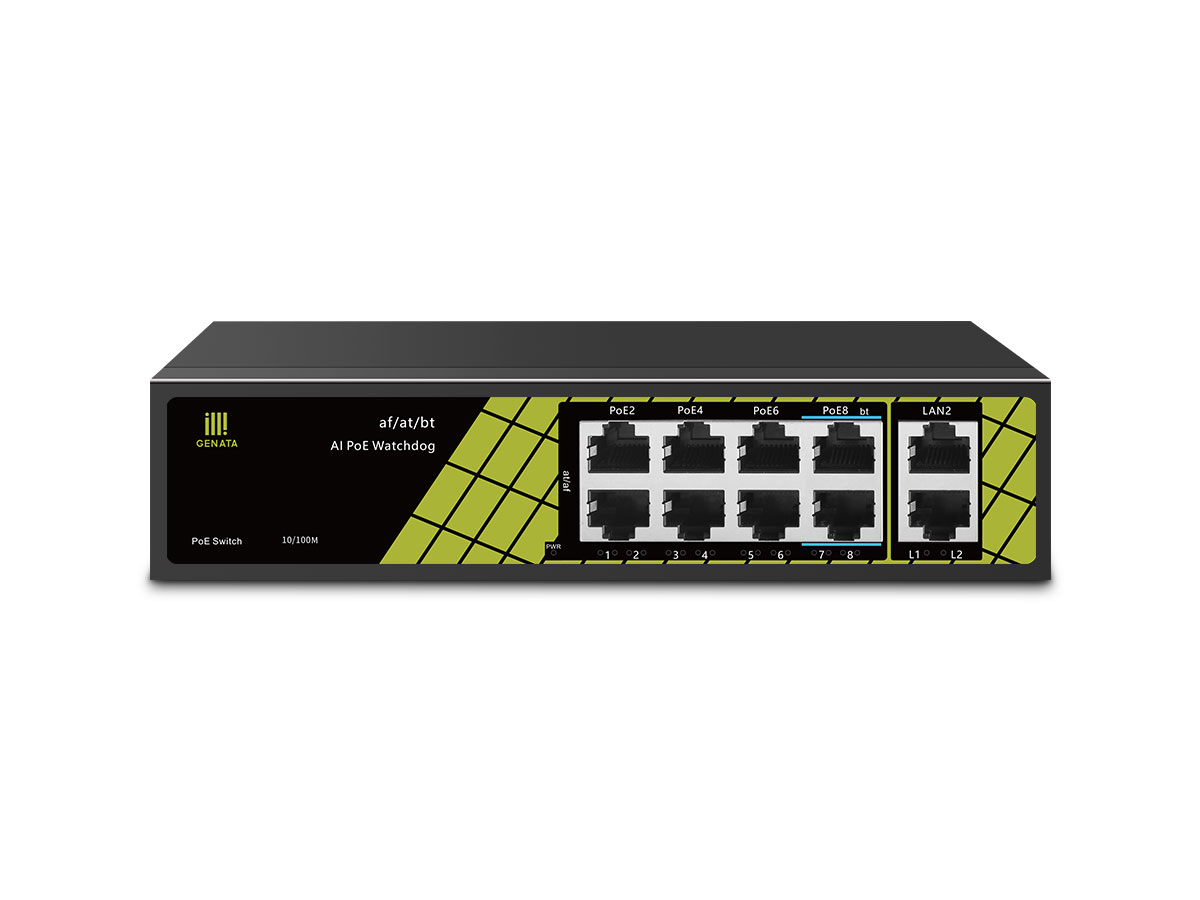

GNT-P9828V6
Ports
PoE (1-6): 10/100Mbps PoE ports (RJ45)
PoE (7-8):10/100Mbps PoE ports (R.J45),Support bt 60W High Power
LAN(1-2): 10/100Mbps uplink ports (R.J45)
Transmission Rate
200Mbps Full Duplex; 10 or 100Mbps Half Duplex
Transmission Distance
130m
Bandwidth:2.0Gbps
Network Latency (10 to 100Mbps): = 16ps (use the 64byte package size)
Performance
Specification
MAC address table: 2K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port,
148800pps the most for 100M port
IEEE 802.3i 10BASE-T
Networking Standard
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support
A War hog: C90-240V Total<120W
ower Output: PoE 1-6 Port: 1/2(+52V), 3/6(GND)≤30
DE 7~8 Port: 1245(+53V),3678(GND) Compatible 1/2(+52V),3/6(GND)≤60*
Protection Level
Physical Specifications Size(L”W”H): 187mm*139mm*43mm, Weight: 1.0KG
Operating Temperature: -30 °C-60 C
Working
Environment
Storage Temperature: 40C -70C
Operating Humidity: 10% ~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing
CE Mark
Certification
FCC Part 15,Class B
RoHS 2.0
Warranty
Whole Device: 1 year
Package Content
AC Power Cable, User Manual
