Description
Model

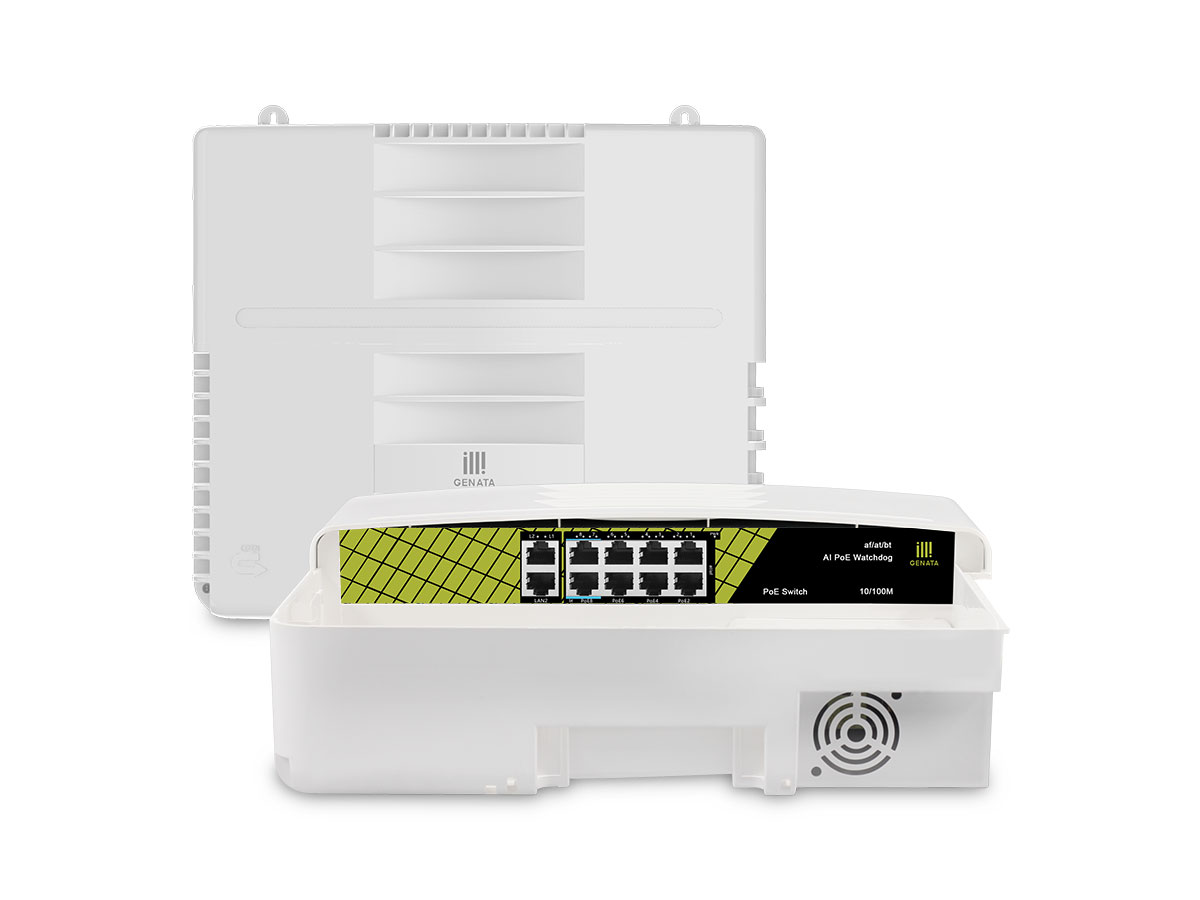

GNT-P9828F6
Ports
POE (1-6):10/100Mbps PoE ports (RJ45)
PoE (7-8):10/100Mbps PoE ports (RJ45),Support bt 60W High Power
LAN(1-2): 10/100Mbps uplink ports (RJ45)
Transmission Rate
200Mbps Full Duplex; 10 or 100Mbps Half Duplex
Transmission Distance
130m
Bandwidth:2.0Gbps
Network Latency (10 to 100Mbps): ≤ 16us (use the 64byte package size)
Performance
Specification
MAC address table: 2K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port,
148800pps the most for 100M port
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
Networking Standard
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support
ower Input: AC 90-240V Totals120V
al Watchdog: Port 1-
Power Output: PoE 1-6 Port: 1/2(+52V),3/6(GND)≤30W
PoE 7-8 Port: 1245(+53V),3678(GND) Compatible 1/2(+52V),3/6(GND)≤60W
Protection Level
Lightning Protection: 6KV, Per: IEC61000-4-5
ESD Protection: 8KV, Per: IEC61000-4-2
Physical Specifications Size(L*W*H): 310mm*260mm*100mm, Weight: 1.6KG
Operating Temperature: -30 C -60 C
Working
Environment
Storage Temperature: 40C-70°C
Operating Humidity: 10% -90% Non-condensing
Storage Humidity: 5%-90% Non-condensing
CE Mark
Certification
FCC Part 15, Class B
RoHS 2.0
Warranty
Whole Device: 1 year
Package Content
AC Power Cable, User Manual
