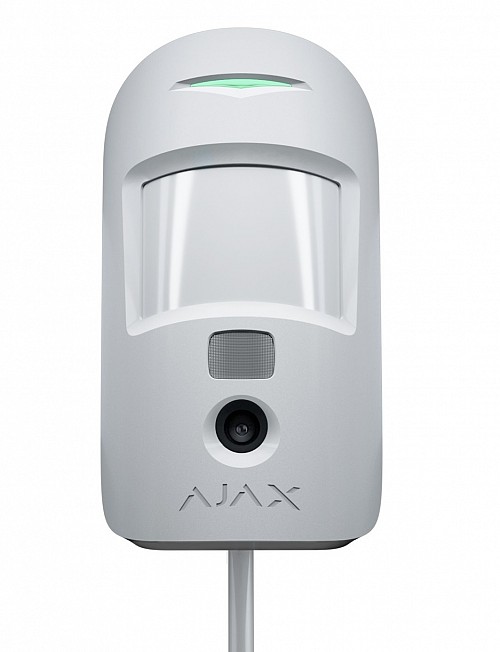

AJAX FIBRA PIR MotionCam (PhOD) White

In Stock

AJAX FIBRA PIR MotionCam (PhOD) White

Brands: Ajax

MotionCam (PhOD) has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly check whether the threat is real to respond accordingly
Photo verification relieves users of unnecessary anxiety and security companies of false patrol calls.
It takes a click for the user to take an on-demand photo at any time to monitor the house’s state.
The detector can automatically take pictures by an alarm of another device in the system
MotionCam (PhOD) Fibra is a device of the wired Fibra product line. Only accredited Ajax Systems partners can sell, install, and administer Fibra products
The Ajax system uses secure two-way communication based on Fibra proprietary protocol. It features encryption and device authentication to prevent sabotage, spoofing, or data theft
Fibra communication requires minimum power consumption. Also, MotionCam (PhOD) is hardwired with a backup battery to power the sensor, LED indicator, and camera during alarms

Category: Uncategorized Brands: Ajax

Description

Description

Description

Compatibility

Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)

Fibra Communication

Two-way communication
Advanced anti-sabotage
Instant notifications.
Remote configuration in the Ajax apps
Line connection : 4-core cable
Fibra line length : up to 2,000 meters (When using the U/UTP cat.5 twisted pair cable)
Encrypted communication

Detection

Sensitive element : 1 PIR sensor
Motion detection distance : up to 12 meters (When installed at the height of 2.4 m)
Motion detection angles : horizontal — 88.5° / vertical — 80°
Motion detection speed : from 0.3 to 2.0 m/s
Sensitivity : 3 levels
Pet immunity : up to 20 kg / up to 50 cm in height
False alarm prevention : SmartDetect Software algorithm
Temperature compensation : Effective motion detection within −10°C to +40°C range

Photo verification

Photo by alarm : The built-in camera is activated if the detector is armed and motion is detected
Photo on demand : The user takes pictures at any time or when the detector is armed (depending on settings)
Photo by scenario : The detector’s camera takes pictures automatically when other Ajax detectors are triggered
Adjustable photo resolution : 640 × 480 px / 320 × 240 px (default) / 160 × 120 px
IR backlight : For night photography and low light conditions
Series of pictures : from 1 to 5 snapshots
Photo delivery : up to 7 s — 160 × 120 px resolution / up to 9 s — 320 × 240 px resolution / up to 20 s — 640 × 480 px resolution

Anti-sabotage protection

Tamper alarm : 2 tampers
Protection against spoofing : device authentication

Power supply

Fibra line power supply : 7−30 V⎓, up to 120 mW (The detector is powered by the control panel)
Sealed battery : LTO AA (It is used when the detector takes photos, activates an IR backlight, and transmits an alarm)
The battery is charged from the Fibra line

Enclosure

Dimensions : 135 × 70 × 66 mm
Weight : 150 g
Operating temperature range : from −10°C to +40°C
Operating humidity : up to 75%
Protection class : IP50
