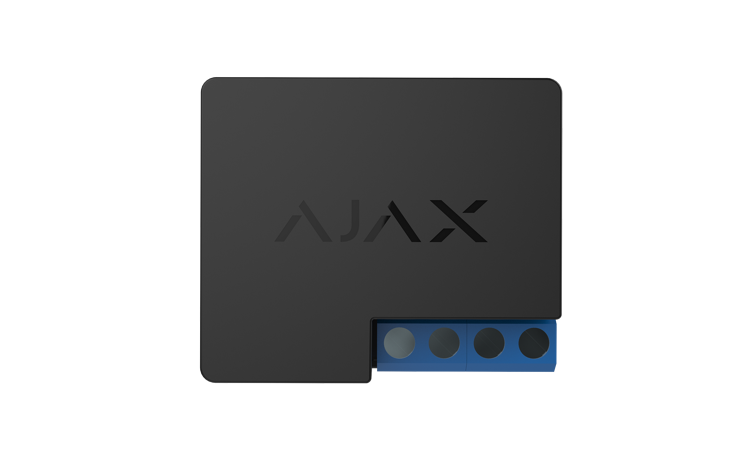

AJAX Wall Switch

Description

• The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors
• The device controls the electric power supply by means of relay, which closes and opens the power supply network
• Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost

• Actuating element :  Electromagnetic relay
• The service life of the relay :  200,000 switching-ons
• Supply voltage : 110 – 230 V AC ± 10% 50/60 Hz
• Voltage protection For 230 V mains : max 253 V, min 184 V
• Maximum load current :  13 ?
• Maximum current protection : Yes, 13 A
• Power output (resistance load 230 V) : Up to 3 kW
• Electricity meter function :  Yes
• Power consumption parameters control Yes: current, voltage,
• consumed power
• The power consumption of the device in the standby mode :  Less than 1 W⋅h
• Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
• Compatibility Operates only :  with Hub, Hub Plus, Hub 2 and ReX
• Maximum RF output power :  Up to 25 mW
• Modulation : GFSK
• Radio signal range : Up to 1,000 m (any obstacles absent)
• Shell protection rating : IP20
• Operating temperature range :  From 0°? to 64°?
• Maximum temperature protection : Yes, 65°C
• Operating humidity : Up to 75%
• Overall dimensions : 39 ? 33 ? 18 mm
• Weight : 30 g
