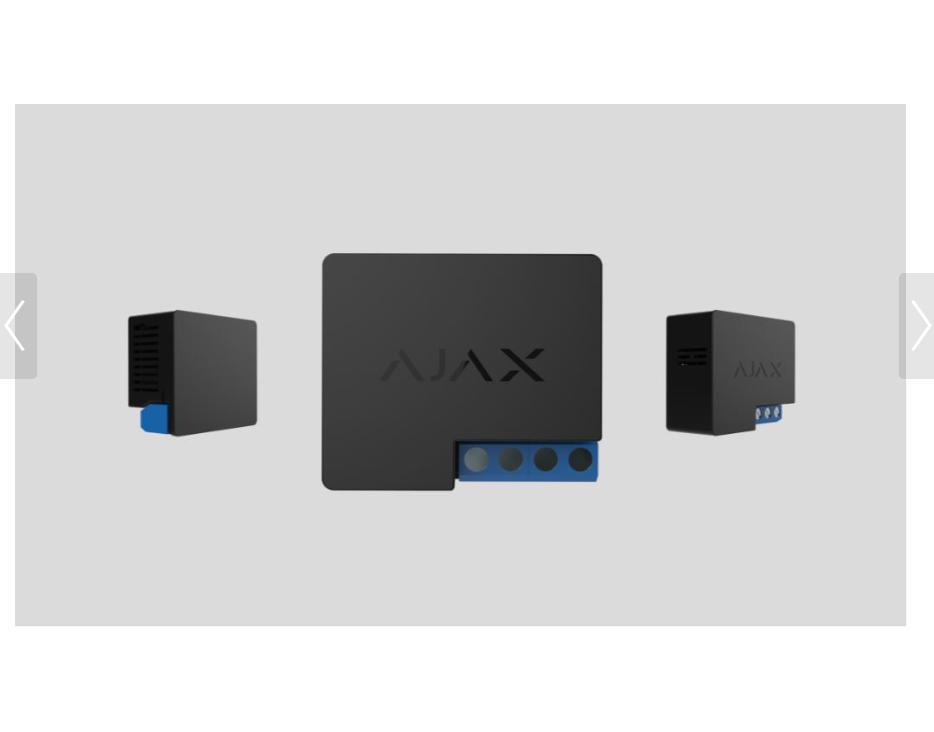

AJAX WallSwitch black

Description

• Actuating element :  Electromagnetic relay
• The service life of the relay :  200,000 switching-ons
• Supply voltage : 110 – 230 V AC ± 10% 50/60 Hz
• Voltage protection For 230 V mains : max 253 V, min 184 V
• Maximum load current :  13A
• Maximum current protection : Yes, 13 A
• Power output (resistance load 230 V) : Up to 3 kW
• Electricity meter function :  Yes
• Power consumption parameters control Yes: current, voltage, consumed power
• The power consumption of the device in the standby mode :  Less than 1 W⋅h
• Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
• Compatibility Operates only :  with Hub, Hub Plus, Hub 2 and ReX
• Maximum RF output power :  Up to 25 mW
• Modulation : GFSK
• Radio signal range : Up to 1,000 m (any obstacles absent)
• Shell protection rating : IP20
• Operating temperature range :  From 0°C to +64°C
• Maximum temperature protection : Yes, 65°C
• Operating humidity : Up to 75%
• Overall dimensions : 39 x 33 x 18 mm
• Weight : 30 g
