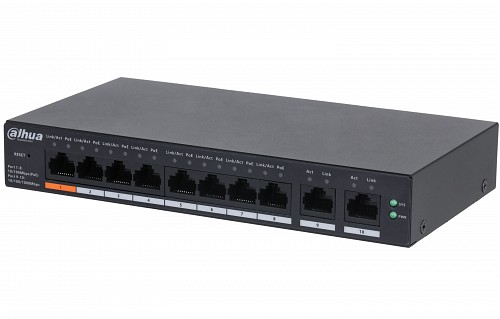

Dahua PoE Cloud Gigabit Switch 8port +2UP 110W CS4010-8GT-110

Description

Hardware

• Included Power Adapter : Yes
• PoE : Yes
• Ethernet Port : 8
• Ethernet Port Speed : 10/100/1000 Mbps
• Ethernet Port Uplink Speed : 10/100/1000 Mbps
• Description of Function Slots : Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）
• Reset Button : 1
• Power Supply : External power supply: 54 VDC, 2.22 A
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 5%–95% (RH), non-condensing
• Storage Temperature : –40 °C to +70 °C
• Storage Humidity : 5%–95% (RH), non-condensing
• Power Consumption : Idling: ≤6 W; Full load: 110 W

Performance

• Layer : Layer 2
• Management Type : Yes
• Smart Managed Switch : Yes
• MTBF : 127.3 years
• Switching Capacity : 20 Gbps
• Packet Forwarding Rate : 14.88 Mpps
• Packet Buffer Size : 4 Mbit
• Jumbo Frame : 15K Byte
• MAC Table Size : 8K
• VLAN Number : 32
• Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Feature

• PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
• PoE Power : Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W
• PoE Power Consumption Management : Yes
• PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）
• Long Distance PoE Transmission : Yes
• VLAN Function : Port-based VLAN
• IEEE 802.3x Flow Control : Yes
• DHCP Function : DHCP Client
• Equipment Management : Web management; App management

General

• Statics Protection : Air discharge: 8 kV; Contact discharge: 6 kV
• Lighting Protection : Common mode: 4 kV; Differential mode: 2 kV
• Net Weight : 0.5 kg
• Gross Weight : 1.25 kg
• Product Dimensions : 190 mm × 106 mm × 30 mm  (L × W × H)
• Packaging Dimensions : 256 mm × 244 mm × 87 mm  (L × W × H)
• Casing Material : Sheet metal
• Installation : Desktop mount; wall mount
• Certifications : CE
