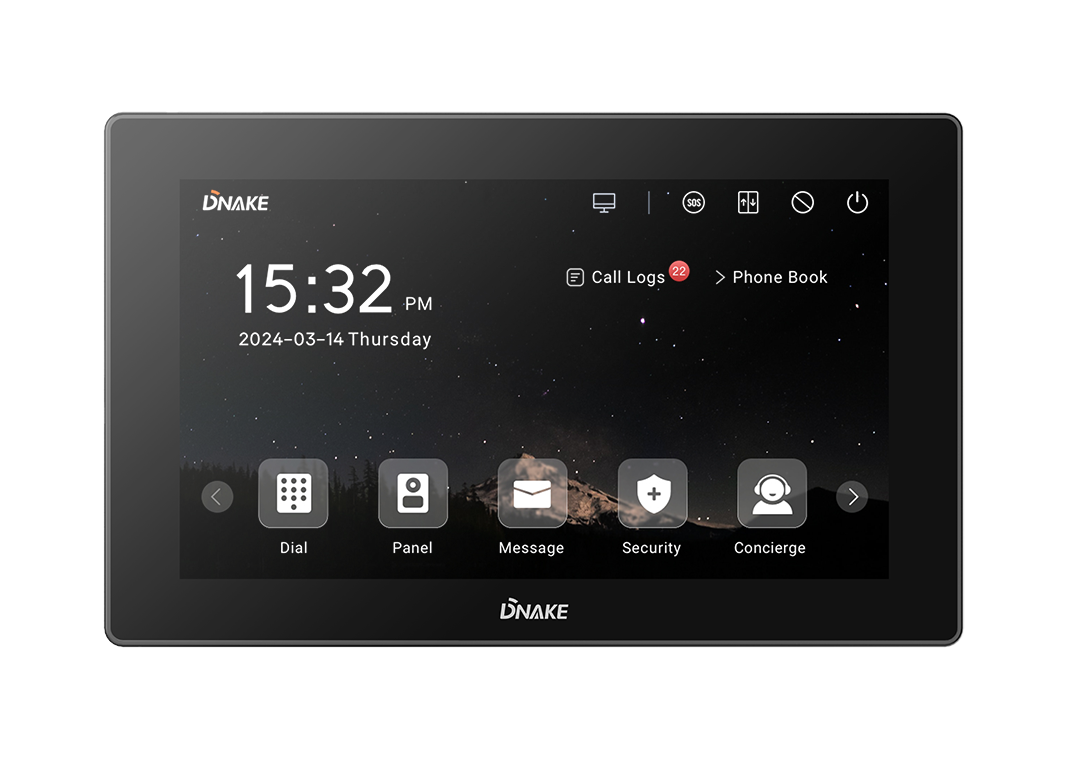

Availability: In StockDNAKE SIP 10.1″ Linux Monitor 280M-S3
- 10.1” capacitive touch screen, 1024 x 600
- Support monitoring 8 IP cameras
- HD quality audio and video communication
- 8-ch alarm inputs, 1 x RS485
- Powered by PoE or power adapter (DC12V/2A)
- User-friendly user interface, easy to understand
- Quick installation and remote management via web interface
- Easy integration with elevator control system
Description
Description
| General |
| System |
Linux |
| RAM |
64MB |
| ROM |
128MB |
| Front Panel |
Plastic |
| Power Supply |
PoE (802.3af) or DC12V/2A |
| Standby Power |
1.5W |
| Rated Power |
9W |
| Installation |
Surface mounting |
| Dimension |
270 x 168 x 15mm |
| Working Temperature |
-10℃ – +55℃ |
| Storage Temperature |
-40℃ – +70℃ |
| Working Humidity |
10%-90% (non-condensing) |
| Display |
| Display |
10.1-inch TFT LCD |
| Screen |
Capacitive touch screen |
| Resolution |
1024 x 600 |
| Audio & Video |
| Audio Codec |
G.711 |
| Video Codec |
H.264 |
| Networking |
| Protocol |
SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port |
| Ethernet Port |
1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port |
1 |
| Power Output |
1 (12VA/100mA) |
| Doorbell Input |
8 (Use any alarm input port) |
| Alarm Input |
8 |
