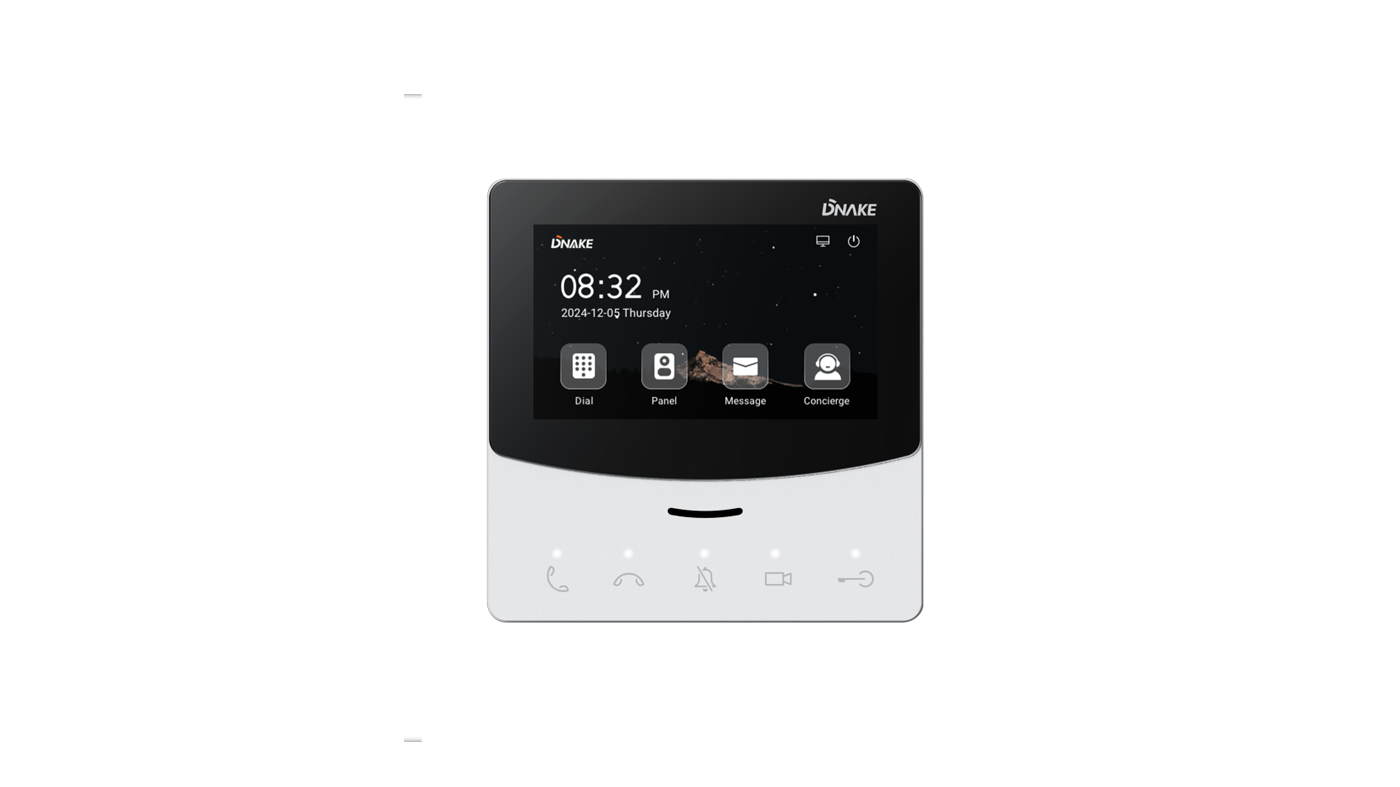

DNAKE SIP 4.3″ Linux Monitor E214

• Easy and quick configuration

• 4.3-inch capacitive touch screen

• Intuitive control with 5 touch buttons

• Optional Wi-Fi

• Support monitoring 8 IP cameras

• Powered by PoE or power adapter (DC12V/2A)

Description

Physical Property
System	Linux
RAM	64MB
ROM	128MB
Front Panel	Plastic
Power Supply	PoE (802.3af) or DC12V/2A
Wi-Fi	IEEE802.11 b/g/n,@2.4GHz (Optional)
Installation	Surface Mounting
Dimension	123 x 121 x 23.2 mm
Working Temperature	-10℃ – +55℃
Storage Temperature	-40℃ – +70℃
Working Humidity	10%-90% (non-condensing)
Display
Display	4.3-inch TFT LCD
Screen	Capacitive touch screen
Resolution	480 x 272
Video
Video Codec	H.264
Video Resolution	720P Max
Audio
Audio Codec	G.711
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
Doorbell Input	1
