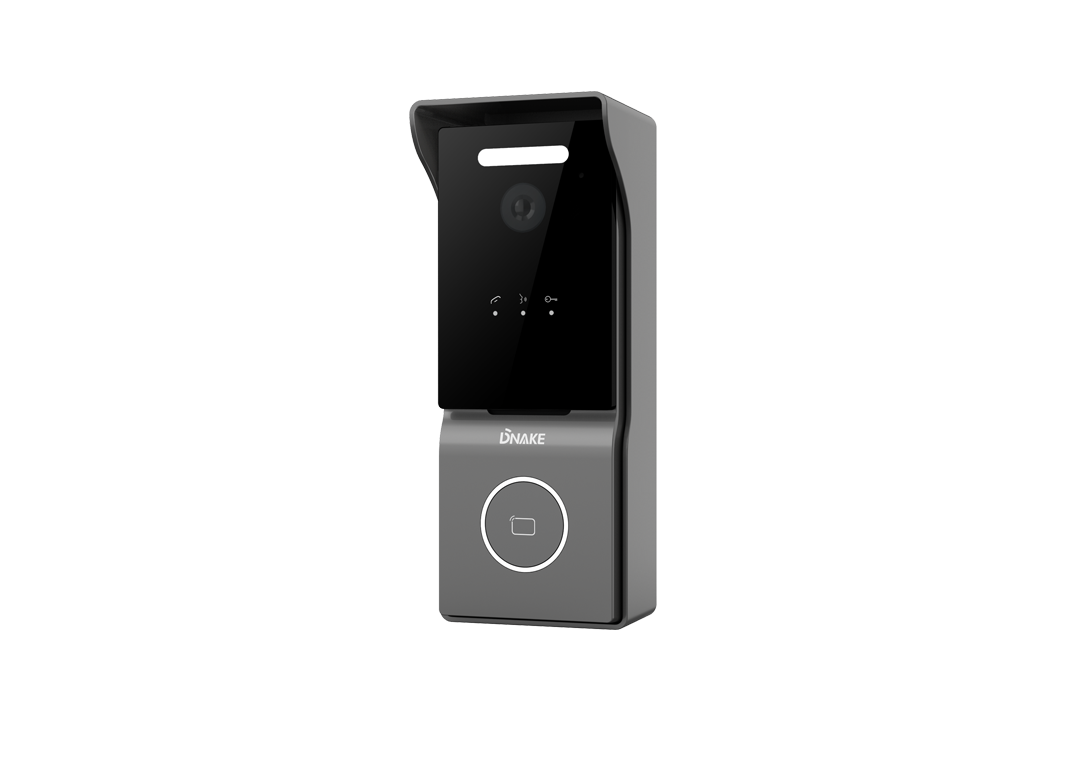

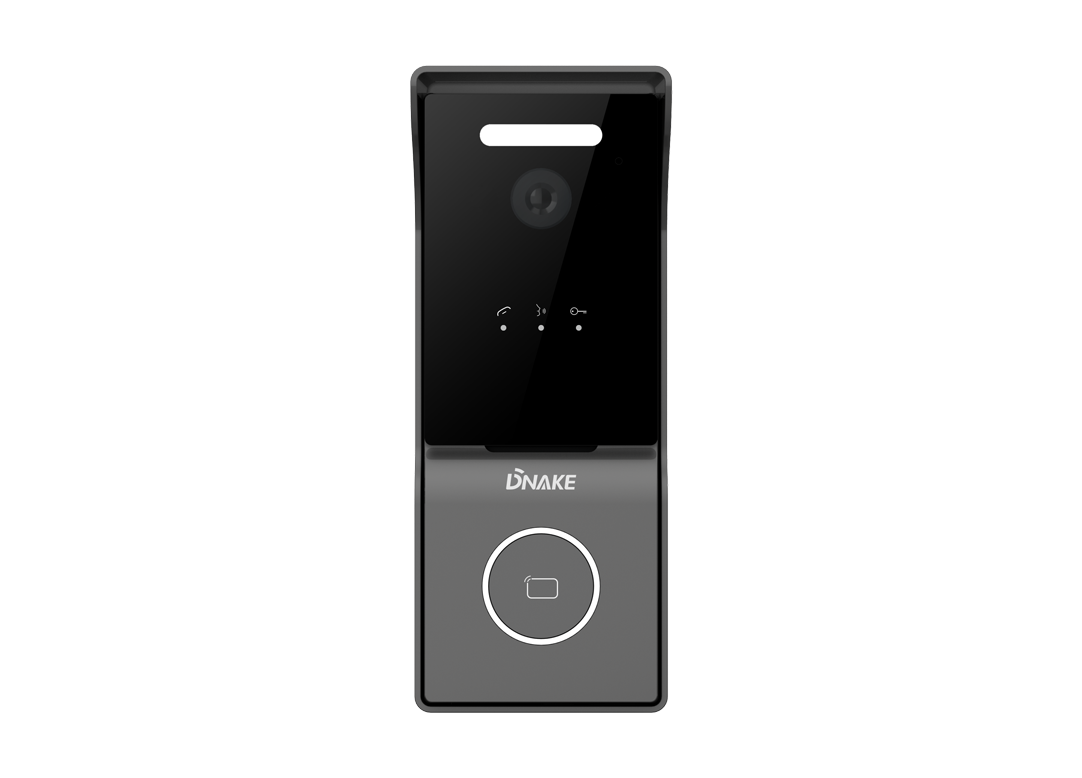

Availability: In StockDNAKE SIP Video Doorstation C112
• 2MP HD digital WDR camera
• 110° wide viewing angle
• Motion detection
• Tamper alarm
• Premium audio and video quality (H.265 codec)
• Optional Wi-Fi
• Door entry methods: call, IC card (13.56MHz), APP
• 3 integrated indicators
• Support 60,000 cards
• Low temperature resistance(-40℃ to 55℃)
• Easy integration with other SIP devices by SIP 2.0 protocol
Description
Description
| Physical Property |
| Â Â System |
 Linux |
| Â Front Panel |
 Plastic |
| Â Reset Button |
 1 |
| Â Â Power Supply |
 PoE (802.3af) or DC12V/2A |
| Â Camera |
 2MP, CMOS, Digital WDR |
| Â Indicator Light |
 3 |
| Â Door Entry |
 IC (13.56MHz) Card, APP |
| Â IP Rating |
 IP65 |
| Â Â Installation |
 Surface Mounting |
| Â Dimension |
 130 x 50 x 28 mm |
| Â Working Temperature |
 -40℃ – +55℃ |
| Â Â Storage Temperature |
 -40℃ – +70℃ |
| Â Working Humidity |
 10%-90% (non-condensing) |
|  Audio & Video |
|   Audio Codec |
 G.711 |
|   Video Codec |
 H.264, H.265 |
| Â Video Resolution |
 1920 x 1080 |
| Â Viewing Angle |
 110°(H) / 60°(V) / 125°(D) |
| Â Light Compensation |
 LED white light |
| Â Networking |
| Â Â Protocol |
 SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Â Port |
| Â Wiegand Port |
 Support |
| Â Ethernet Port |
 1 x RJ45, 10/100 Mbps adaptive |
| Â RS485 Port |
 1 |
|   Relay Out |
 1 |
| Â Â Input |
 2 |
| Â Â TF Card Slot |
 1 |
