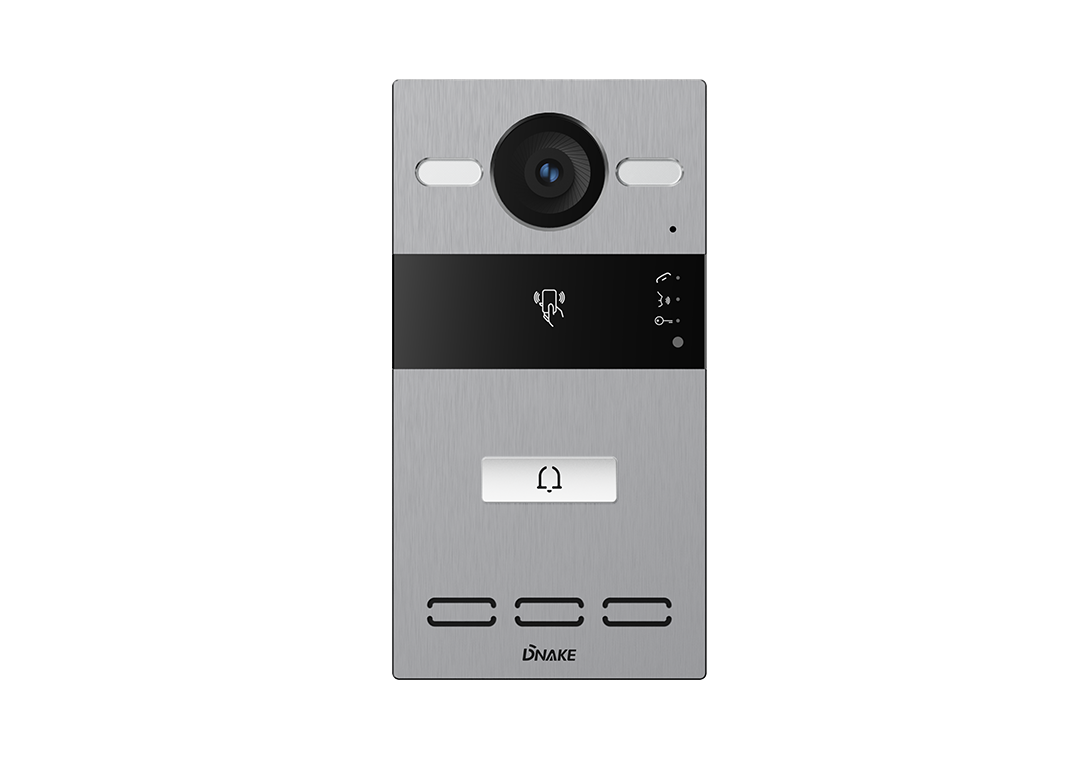

DNAKE SIP Video Doorstation S212

• Aluminum alloy panel

• 110° wide-angle 2MP HD camera with automatic lighting

• Door entry methods: call, IC card (13.56MHz), ID card(125kHz), APP

• Support 60,000 cards

• 3 integrated indicators

• IP65 certified

• Tamper alarm

• Standard PoE (IEEE802.3af) / 12V DC

• Low temperature resistance(-40℃ to 55℃)

• Support surface & flush mounting

• Easy integration with other SIP devices by SIP 2.0 protocol

Category: Smart Audio

Description

Physical Property
System	Linux
RAM	64MB
ROM	128MB
Front Panel	Aluminum
Reset Button	1
Power Supply	PoE (802.3af) or DC12V/2A
Standby Power	1.5W
Rated Power	3.5W
Camera	2MP, CMOS
Indicator Light	3
Door Entry	IC (13.56MHz) & ID (125kHz) , APP
IP Rating	IP65
Installation	Surface & Flush Mounting
Dimension	168 x 88 x 34 mm (Surface Mounting)；210 x 120 x 48 mm (Flush Mounting)
Working Temperature	-40℃ – +55℃
Storage Temperature	-40℃ – +70℃
Working Humidity	10%-90% (non-condensing)
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Video Resolution	1280 x 720
Viewing Angle	110°(H) / 60°(V) / 125°(D)
Light Compensation	LED white light
Networking
Protocol	ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Wiegand Port	Support
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
RS485 Port	1
Relay Out	2
Input	2
