Description

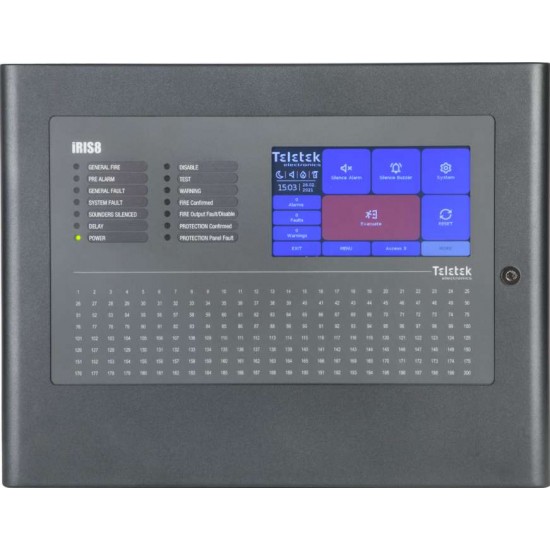

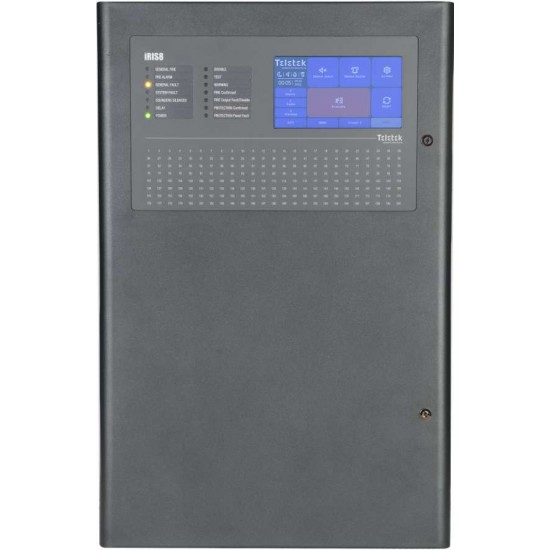

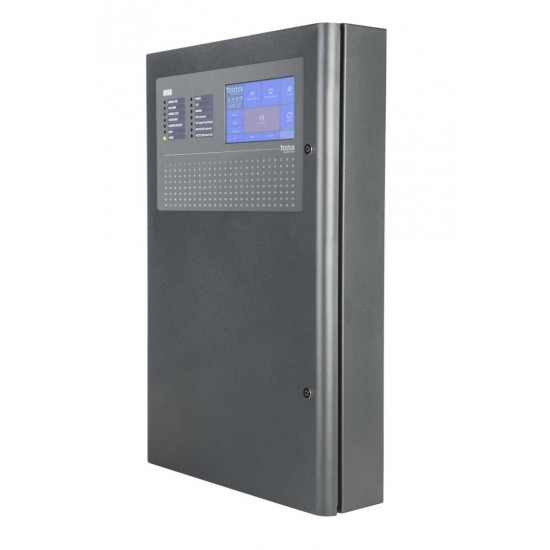

IRIS 8B Network Fire Detection Panel
- Up to 8 loops & 200 zones in a high-quality metal box. All loops are placed in the same box.
- Teletek Electronics protocol – 250 devices per loop.
- Each loop has 2 built-in insulators.
- Each device has a 40-character name. Day/night mode.
- Up to 250 programmable inputs/outputs – freely programmable.
- Possibility of connecting up to 64 IRIS / Simbo panels via RS485 or via network – Local monitoring software (Observer).
- Ethernet input for programming and monitoring.
- Possibility of remote access and management via Cloud Server.
- Management & updates via notifications for IOS & Android devices.
- Management & update via email on PC – ability to view all tables in a technician’s tab.
- Ability to connect via network to send signals to a Signal Receiving Center.
- It has a 7″ color touch screen
- Possibility of using a repeater.
- Dual device address detection capability
- Ability to detect and locate short circuits.
- Expansion card with galvanic isolation.
- Possibility of automatic device registration (Auto addressing).
- Multilingual support – Coming soon with Greek menu.
- Recording of 10000 events.
- Supports loop expansion for System Sensor Protocol – 198 devices per loop (99 detectors / 99 units).
- Metal Facade.
- Certification / Compliance EN54-2/4.
- Operates with 1 12 V / 18 Ah battery & 1 for IRIS8 Ext.
- Dimensions 660x430x120mm.
| Fire detection | |
| Remote Control | Via Smartphone |
| Handling & Management Languages | Greek – English |
| Warranty | 2 Years |
| Fire Detection Zones | 200 |
| Maximum Panel Capacity (Loop) | 8 |
| Agency Certification | EVPU |
| Certificate | EN 54 – 2/4 |
| Capacity per Loop | Up to 250 |
