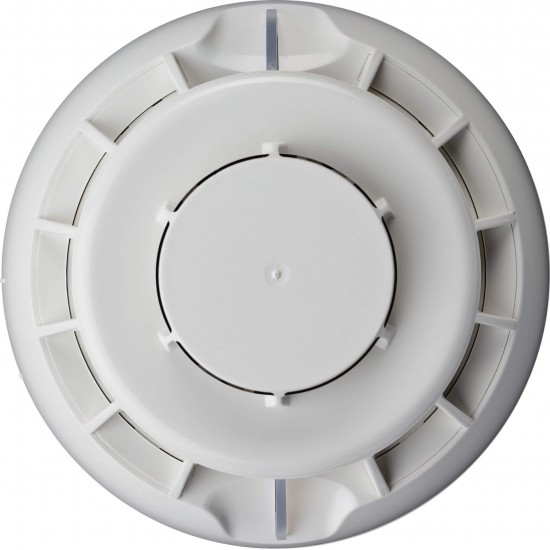

Sensomag M40 Thermal Differential & Mixed Fire Detector
- Digital Algorithm Processor.
- Avoiding false alarms.
- Excellent plastic quality.
- Automatic compensation 360° Visual Display with 2 LED indicators.
- Correct operation indication every 8 seconds.
- Compatible with all fire detection panels on the market with the appropriate base selection.
- B24 or B24 RD.
- Certified according to European regulations EN54-5.7
Technical Specifications:
- Supply voltage 9-30 VDC (nominal value 12/24 VDC).
- Power alarm status.
- B24 and B24D type base: 20mA / 12-30V.
- B24RD type base: 33mA / 12V, 49mA/24V, 57mA/30V.
- B12 type base: 18mA/9V, 29mA/12V, 32mA/15V Class A1 / R (according to EN 54-5/7 standard).
- Protected area up to 120m2 (according to EN54).
- Installation height up to 16m (according to EN54).
- Output in alarm condition on terminal RI 20mA (max) / -3.3V.
- Protection degree IP 30 Operating temperature range -10 / + 60 ° C.
- Relative humidity resistance (93 ± 3)% at 40 ° C.
- Dimensions (with base) diameter 102 mm, h 48 mm.
- Weight (with base) 160 g.
| Fire detection | |
| Agency Certification | EVPU |
| Certificate | EN 54 – 7 |
| Fire Detector Type | Optical and thermal differential |
