Description

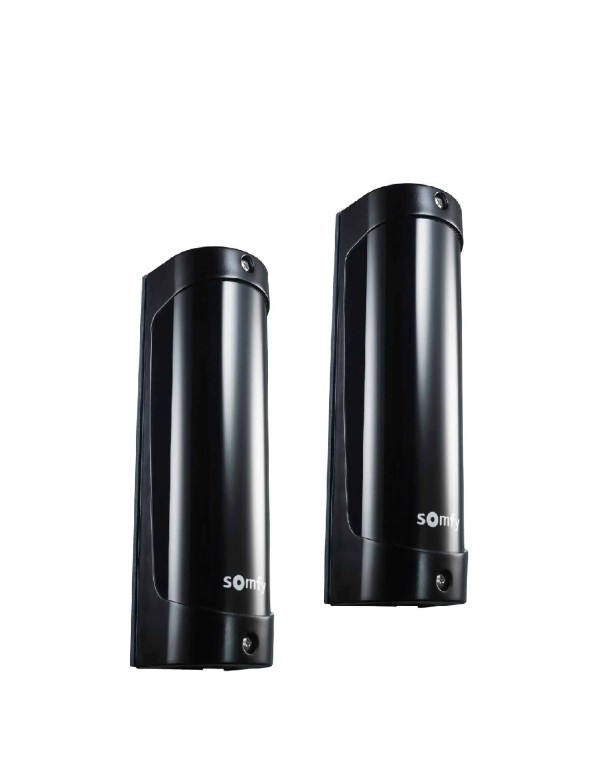

Device for obstacle detection during movement of the gate or garage door.
- Adjustable to 180o (+/- 90o)
- Easy adjustment with tools to align the cells
- Standard 4+2 wires
- NO contact and autotest function
Range
10m (reduced in fog or rain)
Contacts
No dry contact
Self test input
Yes
Power supply
24 Vac/dc
Power consumption
TX: 12mA
RX: 10mA at rest/15mA max
Contact Capacity
30 V 1 A
Electrical Insulation
Class 111 – very low safety voltage
Size (H x l x th)
130 x 45 x 43mm
Operating Temperature
-20oC to +55oC
Index of protection
IP 45
Compatibility
All (excepted Axovia 220B RTS and Elixo Optimo RTS)
