Description

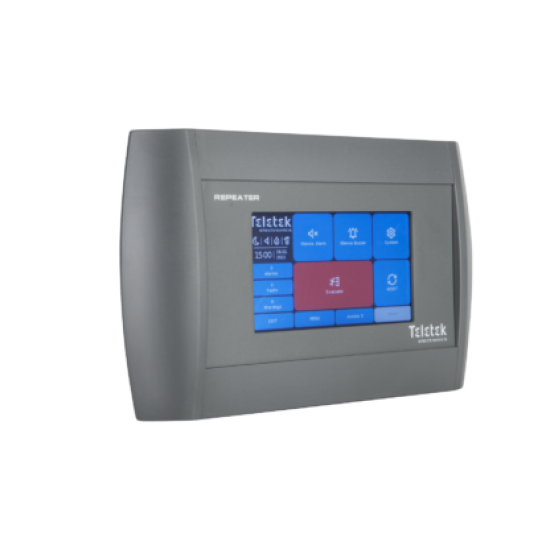

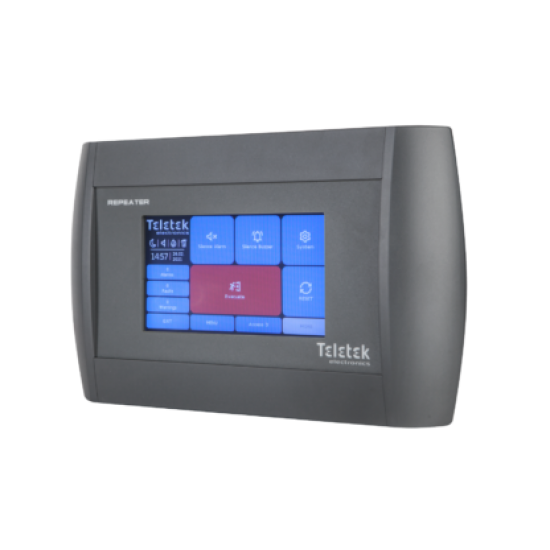

Repeater Addressable Fire Detection Keypad with 7” color screen
- The Teletek Repeater is a keyboard – repeater with full panel control.
- It connects to all IRIS panels via LAN and to SIMPO panels via the redundant module in a network via RS485.
- It has a built-in LAN and redundant module.
- Maximum connection of 64 tables.
- Maximum distance between 2 panels 1000 meters – RS485.
- Certification / Compliance EN54-2/4.
- Possibility to change logo.
Technical Specifications:
- Power supply: from the AUX / GND panel or external (24 ± 4) VDC.
- Maximum consumption 0.11A.
- RS 485 communication UTP CAT 5 twisted pair cable, maximum length between repeater and panel 1000m.
- Cross section 0.5-2.5mm2.
- Protection class IP40.
- Color Gray Material ABS.
- Panel dimensions 200x330x48mm.
- Maximum number of supported tables on the network 64.
- Memory 10000 events.
- Multi-language support.
- Operating temperature -5° C to +40° C.
- Relative humidity 95%.
| Fire detection | |
| Warranty | 2 Years |
| Agency Certification | EVPU |
| Certificate | EN 54 – 2/4 |
| Using a Repeater | Yes |
