Description

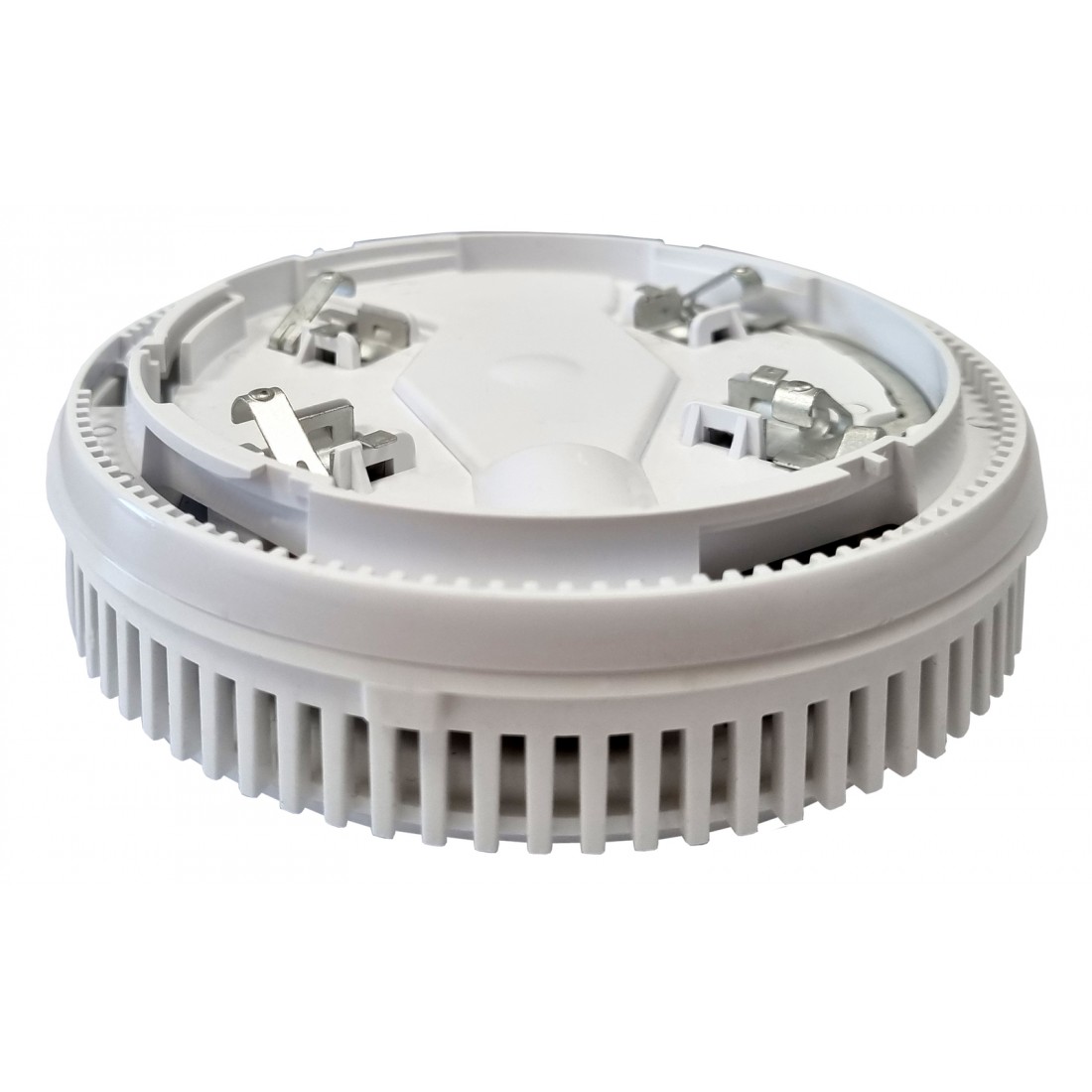

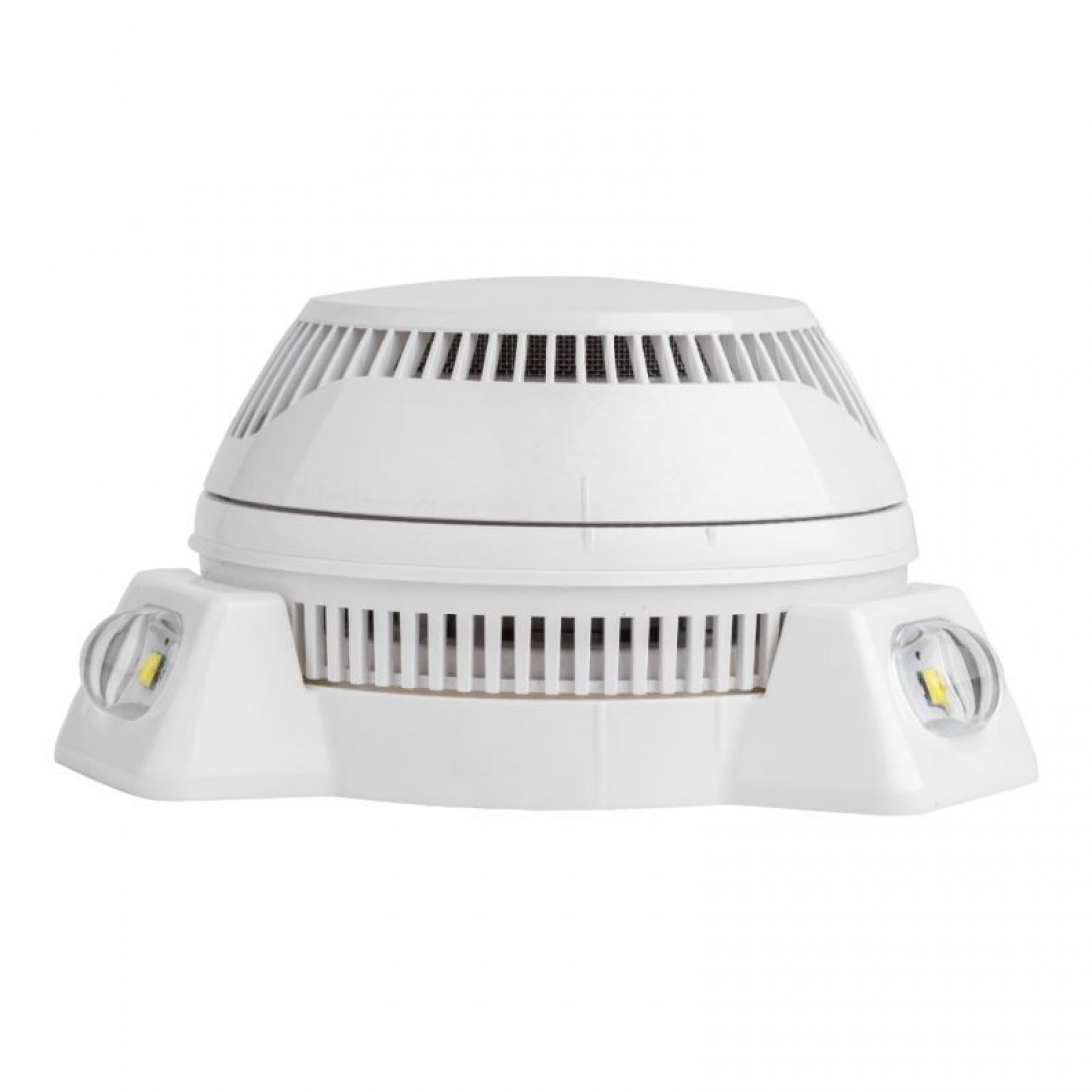

SensoIRIS CSOU IS TELETEK Siren and Fire Detector Base for Point Fire Detection
- Wall-mounted siren and base for fire detector (T110, S130, M140).
- 2 sound levels selectable from the panel – 81dB/ 88dB.
- 32 sound types selectable from the panel.
- Loop powered.
- Built-in loop isolator.
- Compatible docking station B124/ B124HP.
- Certified according to EN54 – 3 .
Technical Specifications:
- Operating voltage range 15 – 32VDC, Nom. 28VDC.
- Maximum consumption in communication 470 mA @ 27VDC Maximum consumption, tone type 27, low volume level 2.8 mA @ 27VDC Maximum consumption, tone type 27, high volume level 9.8 mA @ 27VDC.
- Total number of SensoIRIS CSOU in loop – low level 100 pcs.
- Total number of SensoIRIS CSOU in loop – high level 30 pcs.
- Number of tone types 32
- Material, color ABS, white.
- Dimensions 105 x 22mm.
| Fire detection | |
| Isolator – Isolator | Yes |
| Base in Sirena | Yes |
| Sound Options | 32 |
| Agency Certification | EVPU |
| Certificate | EN 54 – 3 |
| Sound Level | DIP Switch setting 92 db / 100 db |
| Siren Use | Internal |
