Description

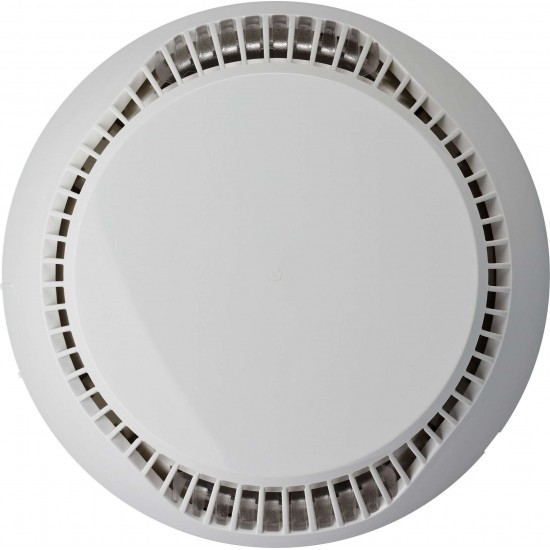

SensoIRIS T110IS TELETEK Thermal / Thermal Differential Fire Detector With Isolator
- Fixed thermal threshold or thermal differential fire detector.
- The detector is powered and controlled from the panel.
- Selection of operating class from table: A1R, A2S, BS.
- 360° LED indicator visibility.
- Fire detector base: B124.
- The SensoIRIS T110 has a lifetime warranty.
- The sensitivity and class of the fire detector are selected from the table (?2S,BS,A1R,) Default Setting A2S.
- Ability to set Day/Night mode.
- Ability to enter address with programmer or automatically from the panel.
- The SensoIRIS T110IS has a lifetime warranty.
- Certified according to EN54 – 5.17 .
Technical Specifications:
- Operating voltage range 15-32VDC (nominal 27VDC).
- Consumption in quiescent state, without communication <130μA @ 27VDC.
- Consumption in quiescent state, with communication <180μA @ 27VDC.
- Consumption in alarm mode, with communication 6.5mA.
- Output in alarm condition on terminal RI (terminals 4/1) 7.5 mA (max) / 7.5V.
- Terminal cable diameter 0.4mm² – 2.0mm².
- Operating temperature -10° C to + 65° C.
- IP30 protection.
- Weight (including base) ~ 110g.
- Dimensions (including base) 103x42mm.
| Fire detection | |
| Warranty | For life |
| Agency Certification | LPCB |
| Certificate | EN 54 – 5 |
| Fire Detector Type | Thermal with insulator |
