Description

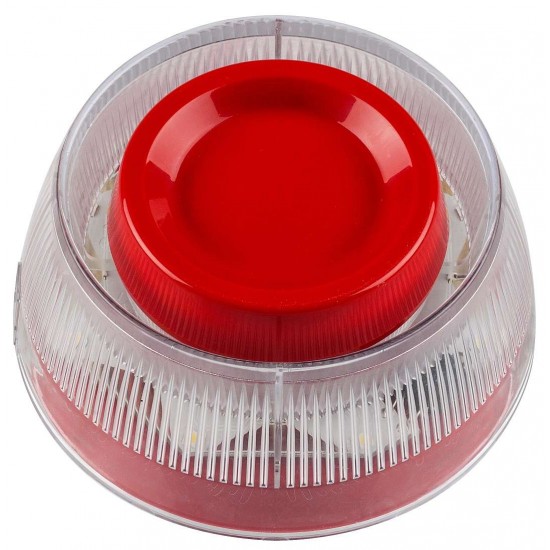

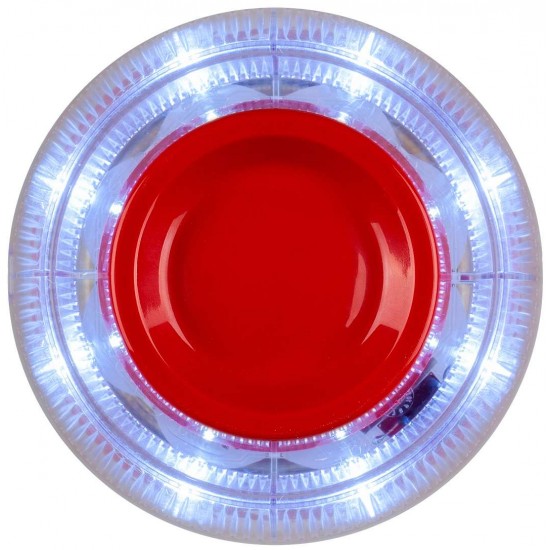

SensoIRIS WSST TELETEK Point Fire Detection Beacon Siren
- Wall-mounted siren with flasher.
- 2 sound levels selectable from the panel – 85dB / 95dB.
- 32 sound types selectable from the panel.
- Loop powered.
- Place on a B124 base.
- Built-in loop isolator.
- Certified according to EN54 – 3/23.
Technical Specifications:
- Operating voltage range 15 – 32VDC (nominal 27VDC).
- Nominal consumption (in standby mode) <500μA @ 27VDC.
- Terminal cable diameter 2.5mm².
- Operating temperature -10° C to + 50° C.
- IP43C protection Weight 183g.
- Dimensions (without base) 116x55mm.
- Maximum consumption (main tone type 27): – low volume level, sound only <5mA – low volume level and strobe <12mA – high volume level, sound only <16.5mA – high volume level and strobe <22mA
- Maximum consumption (other tone types): – low volume, sound only <4mA – low volume and strobe level <11mA – high volume, sound only <10mA – high volume and strobe level <16.5mA.
