Description

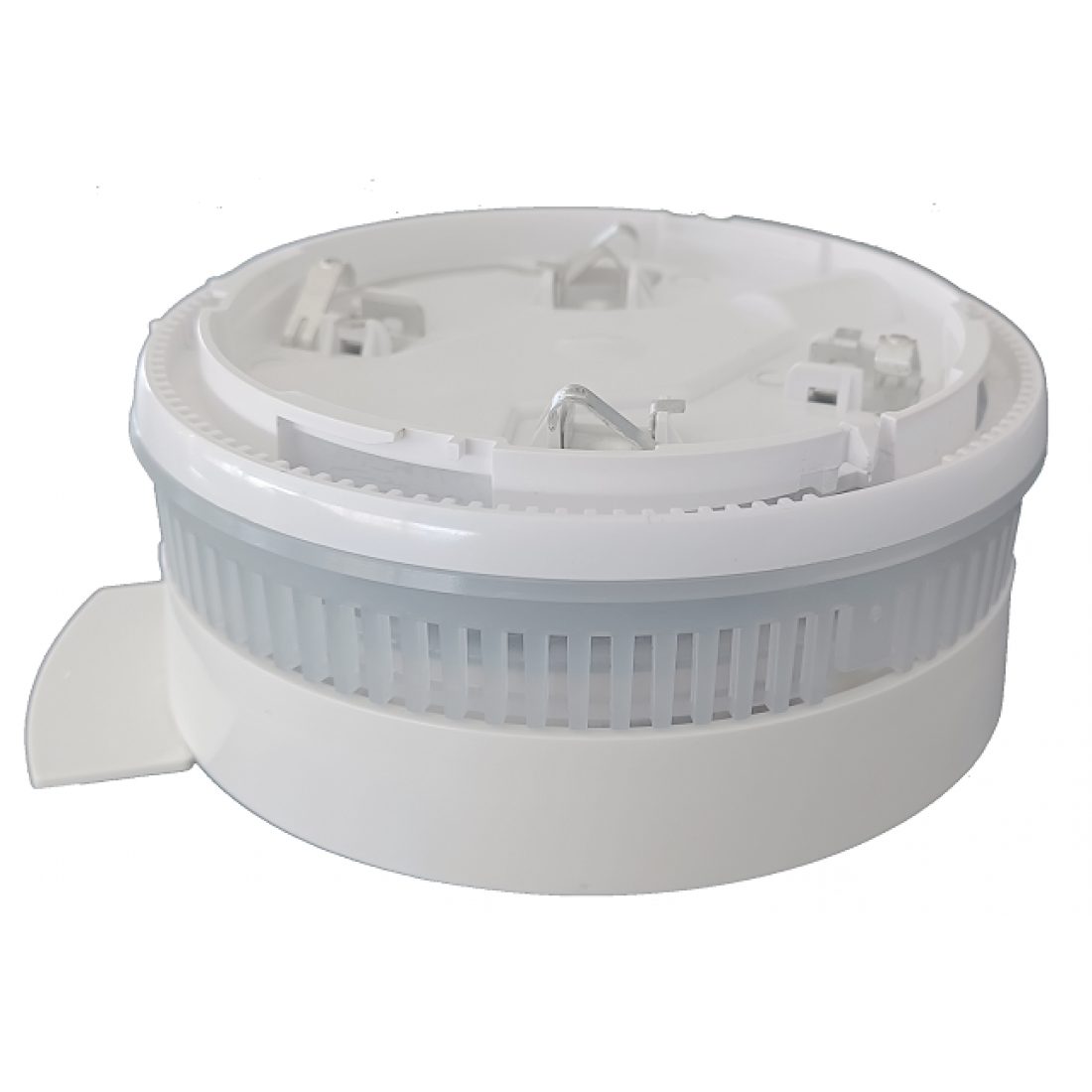

SensoIRIS CSST IS TELETEK Siren With Flash And Base For Point Fire Detector
- Wall-mounted siren with flasher and base for fire detector (T110, S130, M140).
- 2 sound levels selectable from the panel – 81dB / 88dB.
- 32 sound types selectable from the panel.
- Loop powered.
- Built-in loop isolator.
- Compatible docking station B124 / B124HP.
- Certification according to EN-54/3 .
Technical Specifications:
- Operating voltage range 16 – 32VDC (nominal 28VDC).
- Maximum communication consumption 470 mA @ 27VDC.
- Maximum consumption, tone type 27, low level 3 mA @ 27VDC Maximum consumption, tone type 27, high level 10 mA @ 27VDC Total number of SensoIRIS BSST devices in loop – low level 100 pcs. Total number of SensoIRIS BSST devices in loop – high level 30 pcs.
- Number of tone types 32.
- Strobe flashing frequency 1 Hz ABS material.
- Dimensions with assembled SensoIRIS T110 (IS) / S130 (IS) detector 105 x 63mm.
- Dimensions with assembled SensoIRIS M140 (IS) detector 105 x 70mm.
| Fire detection | |
| Isolator – Isolator | Yes |
| Base in Sirena | Yes |
| Sound Options | 32 |
| Agency Certification | EVPU |
| Certificate | EN 54 – 3 |
| Sound Level | 81 dB / 88 dB |
| Siren Type | Siren with Flash |
| Siren Use | Internal |
